| WIRELESS |
| Standards and Protocols |
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds |
AX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range |
2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range |
| WiFi Capacity |
High
Dual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
4 Streams
Connect your devices to more bandwidth |
| Working Modes |
Router Mode
Access Point Mode |
| SECURITY |
| Network Security |
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway |
|
|
| Guest Network |
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network |
| VPN Server |
OpenVPN
PPTP |
| WiFi Encryption |
WPA2-PSK
WPA2-PSK/WPA-PSK
WPA3-Personal
WPA3-Personal/WPA2-PSK
WPA2-Enterprise
WPA/WPA2-Enterprise encryptions |
| HARDWARE |

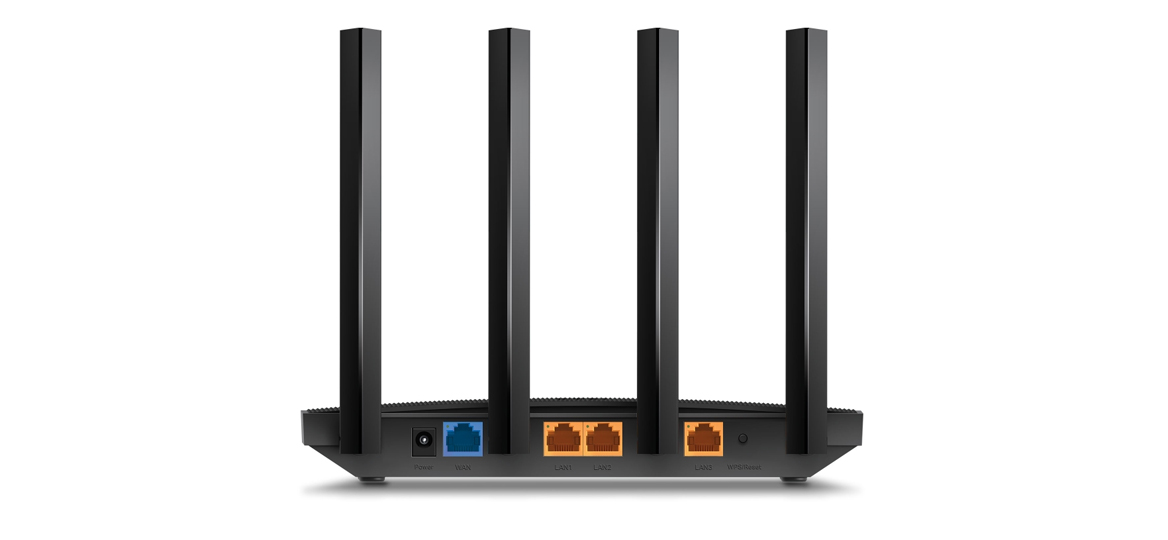

| Ethernet Ports |
1× Gigabit WAN Port
3× Gigabit LAN Ports |
| Buttons |
WPS/Reset Button |
| Power |
12 V ⎓ 1 A |
| SOFTWARE |
| Protocols |
IPv4
IPv6 |
| Parental Controls |
URL Filtering
Time Controls |
| WAN Types |
Dynamic IP
Static IP
PPPoE/PPTP(Dual Access)/L2TP(Dual Access) |
| Quality of Service |
QoS by Device |
| Cloud Service |
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS |
| NAT Forwarding |
Port Forwarding
Port Triggering
DMZ
UPnP |
| IPTV |
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN |
| DHCP |
Address Reservation
DHCP Client List
Server |
| DDNS |
TP-Link
NO-IP
DynDNS |
| Management Features |
Tether App
Webpage |
| OTHER |
| Network Services Enabled by Default |
Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DNS
• Port: 53 Protocol: TCP & UDP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 30001 Protocol: TCP
• Port: 20002 Protocol: UDP |
| System Requirements |
Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC
OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
Java-enabled browser
Cable or DSL Modem
Subscription with an internet service provider (for internet access) |
| Certifications |
FCC, CE, RoHS |
| Environment |
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
| TEST DATA |
| WiFi Transmission Power |
CE:
<20dBm(2.4 GHz)
<23dBm(5.15 GHz~5.25 GHz)
FCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz) |
| WiFi Reception Sensitivity |
5 GHz:
11a 6Mbps:-95dBm, 11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm, 11ac VHT20_MCS8:-66dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-63dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-60dBm
11ax HE20_MCS0:-95dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-92dBm, 11ax HE40_MCS11:-65dBm
11ax HE80_MCS0:-89dBm, 11ax HE80_MCS11:-62dBm
2.4 GHz:
11g 6Mbps: -96 54Mbps: -80
HT20-MCS0: -97 MCS7: -78
HT40-MCS0: -94 MCS7: -75 |
| PHYSICAL |
| Dimensions (W×D×H) |
8.5 × 4.6 ×1.3 in
(215 × 117 × 32 mm) |
| Package Content |

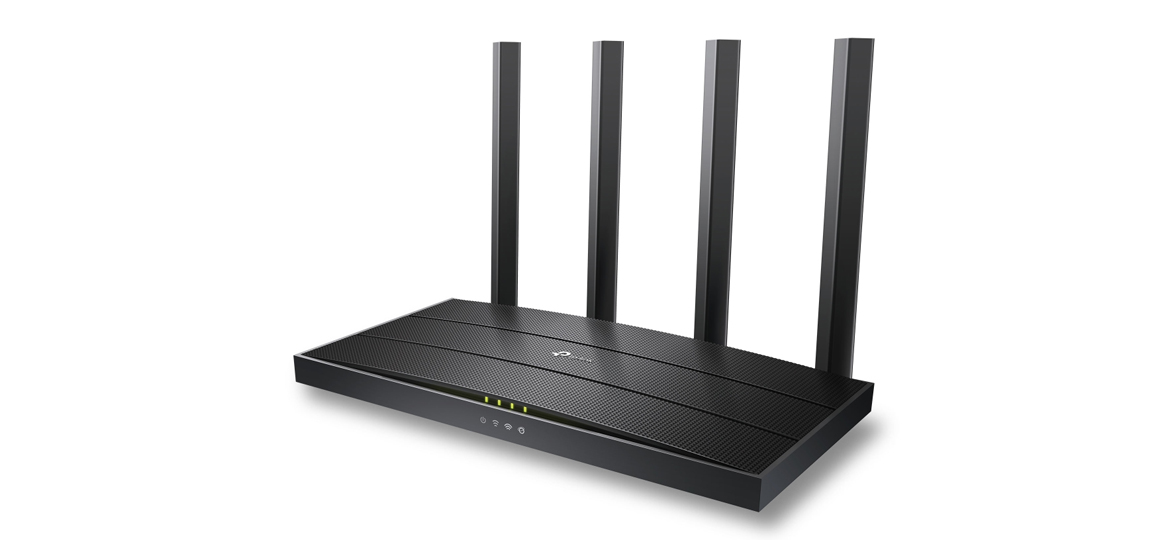

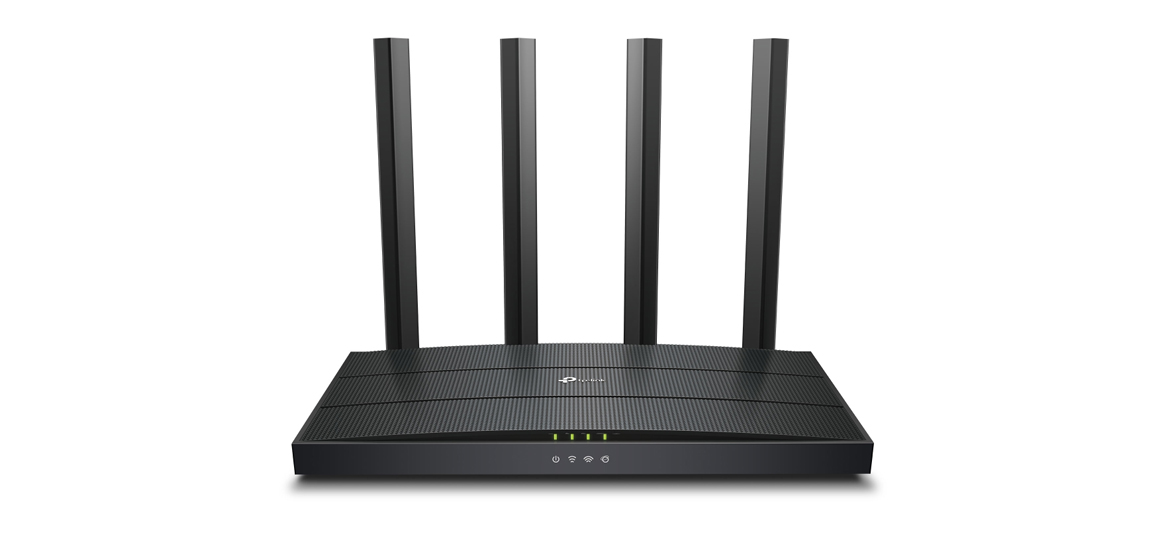

Wireless Router Archer AX12
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide |
